Paktronic Engineering is a “one-stop-shop” for all you LV control and distribution needs. However, do not expect to purchase solutions “off-the-shelf”, as we design and manufacture “bespoke” products specifically to meet the precise requirements of our customers control and distribution needs.

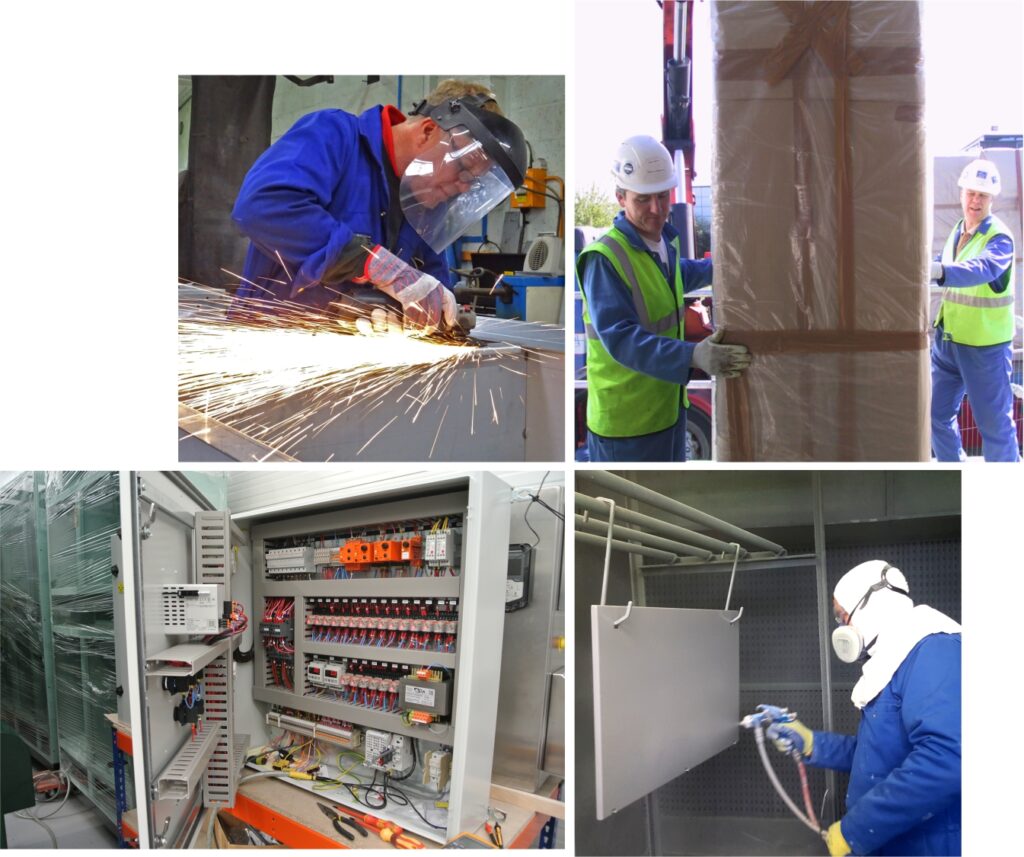

Our service includes:
- Design (panel/enclosure and electrical)
- Fabrication
- Paint Spray
- Busbar configuration and assembly
- Electrical assembly and wiring
- PLC, HMI and SCADA programming and configuration
- Custom Laser Engraved Labels
- Test
- Installation
- Commissioning
- Provision of Manuals and Training
Paktronic offers a broad range of bespoke LV solutions and in meeting the end requirement any number of expertise would have been employed. Our products can be as simple or as intelligent and complex as the customer requires, products/services are summarised below:
Motor Control Centres (MCC’s) & Control Panels
• Conventional or Intelligent
• All forms of separation (Form 2/3/4)
• BS EN 61439-1 (2011) / BS EN 61439-2 (2011) Compliant
• 50kA/1sec or 50kA/3sec ASTA Certified Busbar systems
• Fully Welded, Painted Mild Steel or Stainless Steel Construction
• Fixed Speed or Variable Speed Methods of Starting
• Front/Rear access – Bottom/Top Cable Access
• Internal Power Factor Correction or Active Harmonic Distortion
L.V. Distribution
• All forms of separation (Form 2/3/4)
• BS EN 61439-1 (2011) / BS EN 61439-2 (2011) Compliant
• 50kA/1sec or 50kA/3sec Busbar systems
• Fully Welded, Painted Mild Steel or Stainless Steel Construction
• Extensive Range of Metering Options
• Front/Rear access. Bottom/Top Cable Access
• Internal Power Factor Correction
• ACB, MCCB, MCB, Fuseswitch outgoing options
Power Distribution Units (PDU’s)
• Standard or Bespoke Design
• Fully Welded Painted Mild Steel or Stainless Steel Construction
• Extensive Range of Metering Options and associated Outputs
• MCB, MCCB, Fuse outgoing options
• Surge Protection Options
• Thermal Imaging Camera Metalwork Options.
Generator Controls / Switchgear
• Automatic Mains Failures (AMF) Systems
• Full Exporting/Synchronising Systems
• Interface with Existing Generator/Controls
• G59 Compliance Testing and Commissioning
2-Pump (Packaged) Pumping Stations
• Form 2 or Form 4 panel construction
• GRP Kiosk (Conventional or Security Rated to LPCB LPS1175 Level 3 and Level 4)
• Telemetry Equipment Installation.
• Sewers for Adoption 7th Edition Compliant
Metalwork Fabrication
• Mild Steel or Stainless Steel Fully Welded Construction
• IP54 (Indoor) or IP65 (Outdoor) Solutions
• Laser Cutting
• All forms of separation (Form 2/3/4)
• Bespoke Panel or Metalwork fabrication solutions
• Modifications/Extensions to existing panels.
Busbar Systems
• HDHC copper bar tinned or un-tinned
• Ranging from 30 x 10mm single bar to 100 x 10mm double bar
• Assembled and mounted with insulated supports
• ASTA Certified – 50kA for 1 Second
• ASTA Certified – 50kA for 3 Seconds
• BS EN 61439-1 (2011) / BS EN 61439-2 (2011) Compliant
• On Site Busbar replacement/Modifications
Power Factor Correction
• Site Surveys
• Replacement of Existing Capacitors
• Individual or Bulk Correction
• Detuned Systems for VSD Installations
Laser Engraved Labels
• Latest computerised engraving technology
• Custom manufacture up to A3 size
• Colour choice for label and text
• Dual Language Labels
• Equipment Identification, Valve Tags, Rating Plates, Danger/Warning Labels
• Labels only service
SCADA Systems
• Rockwell Factory Talk View SE SCADA
• Wonderware Intouch
• New Systems or additions to existing systems
• Ethernet I/P, Profibus, Modbus, Fibre-Optic, PSTN/PSDN, Radio Links
• Feasibility studies, Functional Design Specifications, Test Documentation.
PLC & HMI Control
• Highly experienced Software Design Team
• Site Surveys and Feasibility Studies
• Control Philosophy review
• Full Functional Design Specification (FDS) and Test Documentation
• Feasibility studies, Functional Design Specifications, Test Documentation
• Simulation Software Development for testing PLC/HMI operation pre-installation
• PLC/HMI software Development
• Rockwell, Siemens, Schnieder, Mitsubishi, Yokogowa ,Omron, Horner PLC’s
• Ethernet I/P, Profibus, Modbus, Fibre-Optic, PSTN/PSDN, Radio Links
• Modifications/Extensions to Existing PLC Systems
• Replacement of Obsolete PLC Hardware
